Product Details
＋
Description

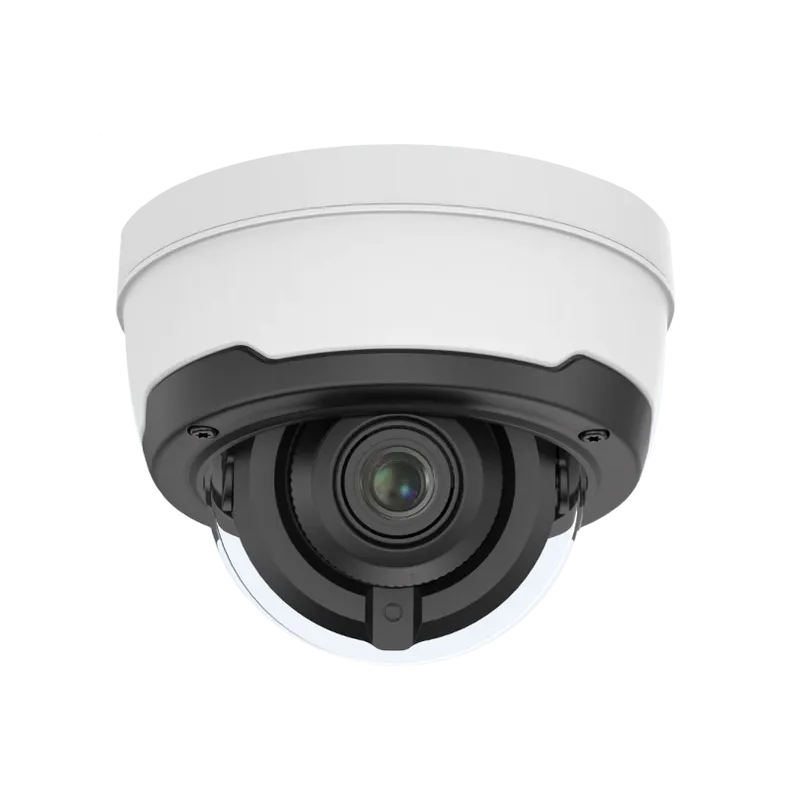

5MP Security Camera, Facial Recognition, IR Varifocal Lens
This 5MP security camera features an exceptional 2.7-13.5mm Motorized Lens Varifocal IP66 IR Vandal-proof Dome Camera, PoE, 12VDC, BNC Output, SD Card Slot, Audio In/Out, Alarm In/Out, IR Up to 100ft, iPac AI Enabled with Facial Recognition System.
Features
-
Image Sensor: 1/3" Progressive Scan CMOS
-
Lens Type: 2.7mm H.FOV: 92°
- WDR: 120DB
-
System Compatibility: ONVIF 2.4, RTSP
Specifications
Specifications
Mechanical specifications |
|
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Illumination |
0.002Lux @(F1.2,AGC ON) 0 Lux with IR |
| Shutter Speed | 1/5 s – 1/20,000 s |
| Lens Type | 2.7 – 13.5mm |
| Lens Mount | M12 / M14 |
| Day and Night | IR Cut Filter with Auto Switch |
| Dynamic Range | Digital WDR |
| Digital Noise Reduction |
3D DNR |
Compression |
|
|---|---|
| Video Compression | H.265 / H.264 / MJPEG |
| Image Resolution | Up to 5MP ( 2592 X 1944) |
| Video Bit Rate |
8Kbps ~ 8Mbps |
Image |
|
|---|---|
| Frame Rate |
Main Stream: 5MP (2560 X 1944), 4MP (2592 X 1520), Sub Stream: D1 (704 x 480) - VGA (640 x 480) - QVGA (320 x 240) @30 fps Mobile Stream: VGA (640 x 480), QVGA (320 x 240), 50Hz: 25FPS @ 5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA, 60Hz: 30FPS @ 5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, and Adjustable Browser |
| Day and Night Switch | Auto / Schedule / Triggered by Alarm In |
Interface
|
|
|---|---|
| System Compatibility | ONVIF (Profile S/G/T) |
| Interface | 1 RJ45 10M / 100M Ethernet Interface |
| IR Distance | Up to 98 ft. |
| POE | Built-In PoE |
| Security | Flash-Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filtering |
| Edge Recording | Yes, Micro SD slot |
| Video Analytics | Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection; Cross and People Counting; Camera obstruction; Region of interest. DEEP LEARNING: Face Detection / Face Recognition / Human detection / Vehicle detection |
Electrical
|
|
|---|---|
| Power Supply |
12 VDC ± 10%, POE (IEEE802.3af) |
| Power Consumption |
3.5W / 4.5W (IR OFF), 7.5W / 9.5W (IR ON) |
| Operating Temp. |
-40 °F - 140 °F Humidity 95% or less (non-condensing) |
Physical |
|
|---|---|
| Dimensions |
5.78" x 4.6" |
| Net Weight |
2.35 lb |
| Weather-Rating | IP66 Rated |
What's In The Box
What's In The Box
- Qty 1 - Facial Recognition 5MP IR Varifocal Lens
