Wireless remote transmitters allow access control for up to three doors from one device. Ideal for front desk/reception applications or hard-to-wire locations. Designed to work with magnetic locks, electric strikes, keypads, gate operators and door operators. Kits include channel receiver and transmitter with mount and keychain.

Features

Standard Features

• Transmitter can be mounted under a deskor on a wall
• 12" antenna with up to 300’ range
• Rolling code with over 1 billion code combinations
• Latching option keeps doors unlocked until button is pressed again
• Receiver can be controlled by up to 30 transmitters
• Receiver has a 5 second momentary output

Options

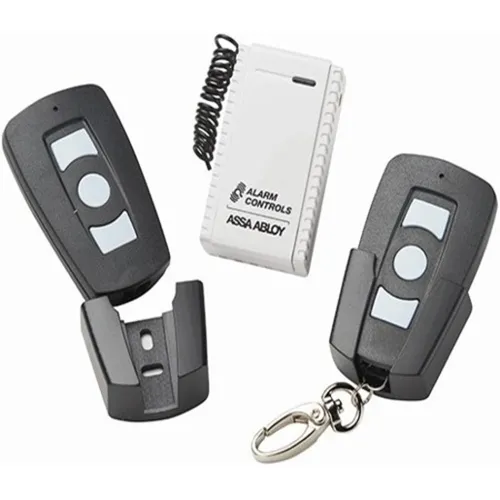

• RT-1one receiver, two transmitters
• RT-1Tadditional transmitter
• RT-1TWadditional transmitter with wire lead
• RT-3three receivers, one transmitter
• RT-3Radditional receiver

Specifications

Certifications & Listings

• CE Certified
• RoHS compliant

Dimensions:2-1/2"L x 1-1/4"W x 3/4"D

Electrical:

• Receiver operates on 12 or 24 VDC/VAC
• Max current draw 50mA
• Relay SPDT contact rated 1A at 30 VDC or 120 VAC
• Working frequency: 433.92 MHz

Operating Temperature:-4 to 140F
