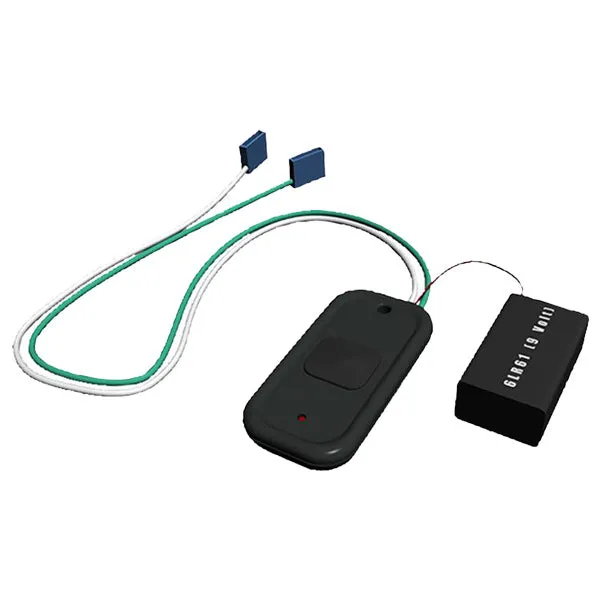

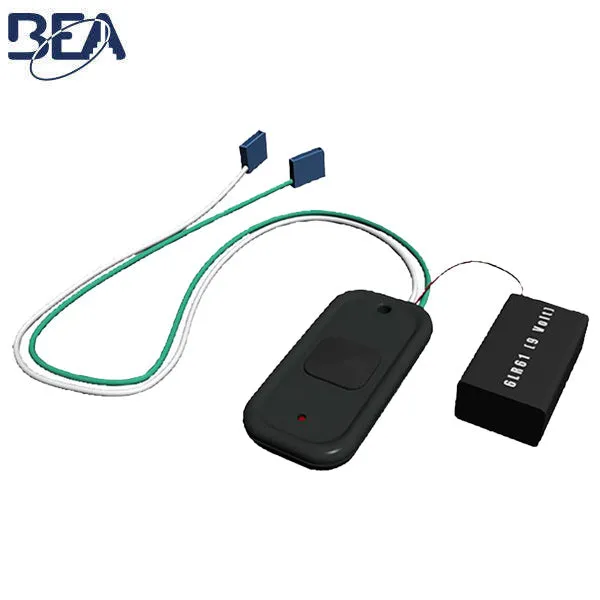

The 10TD433PB9V transmitter is a 1-button, hard-wired, digital transmitter w/flag connectors that is powered by a standard 9-volt battery. 10TD433PB9V transmits a unique rolling code each time the transmitter is activated to ensure a secure signal. Internal LED light signals activation. Compatible with all automatic door 'remote' applications. The 433 MHz Series is ideal for wireless activation and/or sequencing of automatic doors. These digital, radio-controlled transmitters and receivers are universally compatible with any type of automatic door application. Program up to 100 transmitters into a single receiver. Transmitter codes can be removed individually or all at once. The 433 MHz series features delay or no delay programming options for vestibule applications. Toggle or pulse mode is selectable by DIP switch. Choose 0.5 or 10-second relay hold time. The 433 MHz series is reliable and efficient.
Features:
- Uses a standard 9-volt battery
- 1-button, hard-wired w/flag connectors
- transmits a unique rolling code each time the transmitter is activated to ensure a secure signal
- Compatible with all automatic door "remote" applications
- Not compatible with 10BOXJAMBST Jamb Style Surface Mount Box
- Ideal for wireless activation and/or sequencing of automatic doors
- transmitter codes can be removed individually or all at once
- Delay or no Delay programming options for vestibule applications
- Select toggle or pulse mode by DIP switch
- 0.5 or 10-second relay hold time
Specifications:
| Frequency | 433 MHz |
| Emitted Radio Power | -28.7 dBm (TX) |
| Power Consumption | 3mA (transmitter) ; 10mA (receiver) |
| Power Hardware | One 9-volt or 3-volt battery |
| Power Handheld | One 3-volt battery |
| Input Voltage | 12 - 24 VAC / VDC (receiver) |
| Contact Rating | 1.0A @ 30 VDC 0.5 @ 125 VAC 0.3 @ 60 VDC |
| Operating Temperature | 13 - 131 °F (-10 – 55 °C) |
| Capacity | 100 Programmed transmitters (per receiver) |
| LED Functionality | Receiver/Transmitter: Red Relay Activity: Blue |
| Transmitter Dimensions | 2 1/8" (W) x 1" (H) x 2 3/4" (D) |
| Norm Conformity | CE, FCC, IC |
| Clear Line of Sight Range | ~150 feet |
