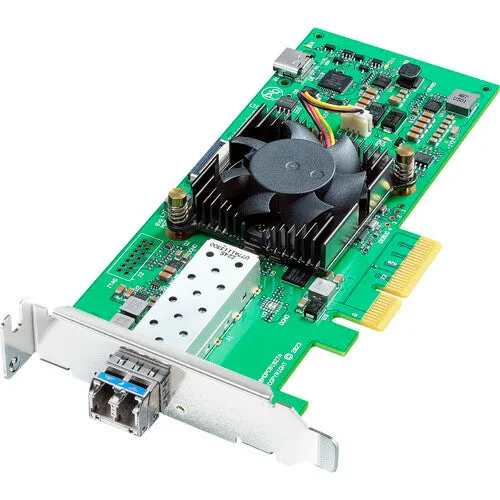

Name: Blackmagic Design DeckLink IP HD Optical
SKU: 694524

Product Details ＋

The Blackmagic Design DeckLink IP HD Optical features 3 channels of capture and playback to 2110 IP broadcast systems via an SFP based optical fibre Ethernet connection. It supports all 720p, 1080i and 1080p standards up to 1080p60. DeckLink IP cards are the easiest way to capture and play back video directly into 2110 IP based broadcast systems! They have the same DeckLink features so all your existing software will just work! DeckLink IP cards support multiple video channels plus each channel can capture and play back at the same time. This means you can build racks of servers generating broadcast graphics, virtual sets, or GPU based AI image processing, all directly integrated into 2110 IP broadcast infrastructure. You can even use DaVinci Resolve for 2110 IP based broadcast editing workstations! DeckLink IP features a high speed PCIe connection so it works on the latest Mac Pro, Windows and Linux computers.

Key features

PCIe Playback & Monitoring Card
Ideal for 2110 IP Broadcast Systems
10-Bit 1080p60 Uncompressed Video
10G Optical Fiber SFP Port
All Popular Video Software Supported
Compatible with Mac, Windows, and Linux
NMOS Protocol Support
Media Express Software Included

10G Ethernet for Multiple SMPTE 2110 IP Channels

DeckLink IP cards conform to the SMPTE ST2110 standard for IP video, which specifies the transport, synchronisation and description of video, audio and ancillary data over managed IP networks for broadcast. It also keeps video sources in sync using a common PTP clock. DeckLink IP supports SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data. The big advantage of SMPTE 2110 is all video, audio and ancillary data are transported independently over the network. Plus DeckLink IP supports multicast, which is an extremely efficient way of distributing video, audio and data from a single source to multiple destinations.

Built in Video Firewall for Total IP Network Security

The problem with computers and 2110 IP video networks is the vulnerability to rogue software or even hackers. That’s because anyone can send data to the computer’s Ethernet connection. However DeckLink IP eliminates this problem because all video is transferred using frame buffers. It’s like a video based firewall! This means the DeckLink IP Ethernet port is isolated from anything other than video and audio. Instead, like all DeckLink cards, the video and audio are transferred to on board DeckLink frame buffers where video playback is managed and then converted to 2110 IP video channels. This means it’s totally impossible for rogue software or hackers to access the 2110 IP network directly!
