Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Application | Power supplies ; Sensors ; Medical ; Automation ; Test Equipment. |
| Dial Type | Analog |
| Diameter | 1.811" (46mm) |
| Diameter, Shaft | 0.25" (6.35mm) |
| Dimensions | 1.811 x 0.94" (46 x 23.88mm) |
| Finish | Satin Chrome |
| For Use With | For precision potentiometers or other rotating devices up to 20 turns |
| Mounting Type | Panel Mount |
| Number of Turns | 20 |
| Range | 20 Turns |
| Series | |
| Torque, Tightening | 16.94 N-cm (Min.) |
| Weight | 2.5 oz. |
Overview

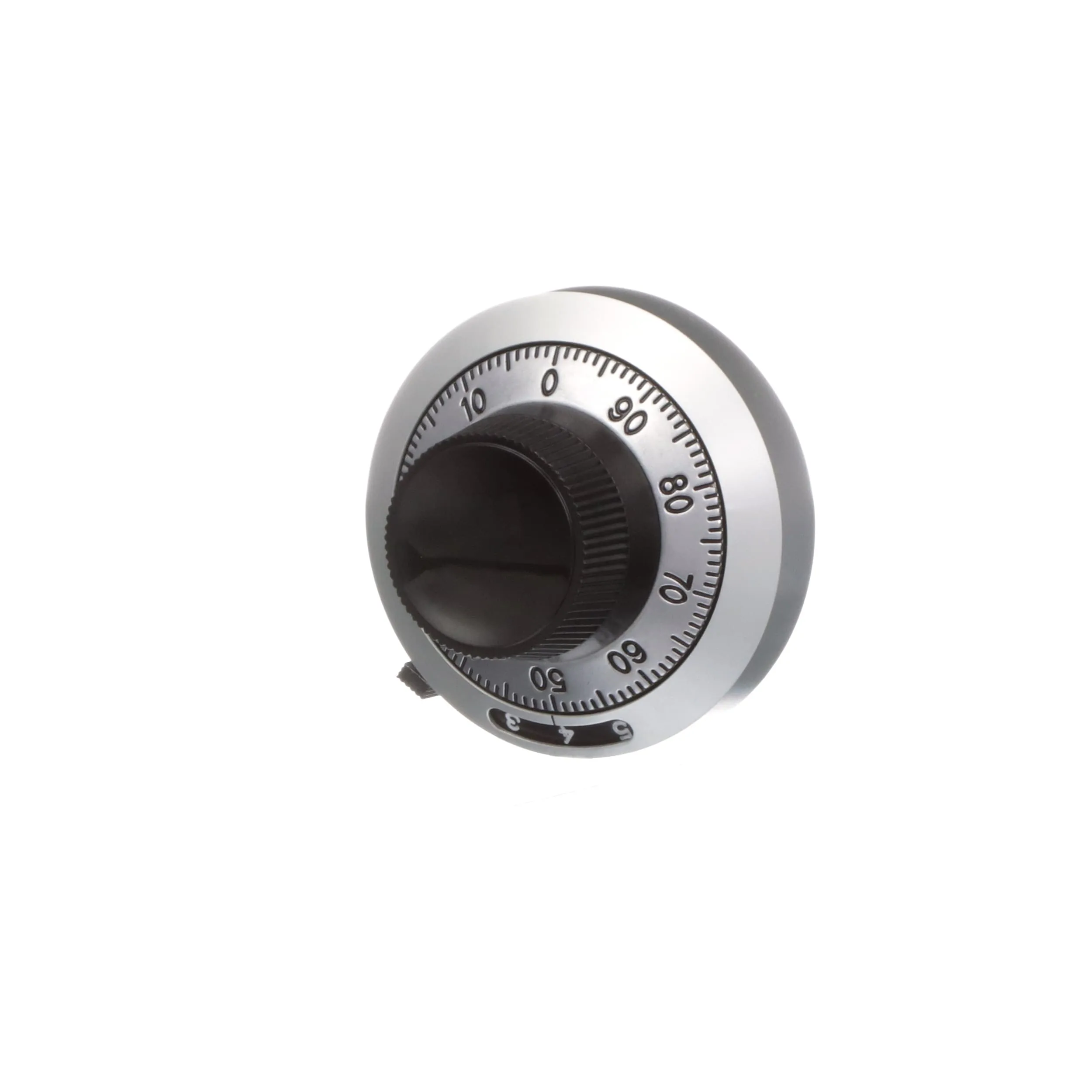

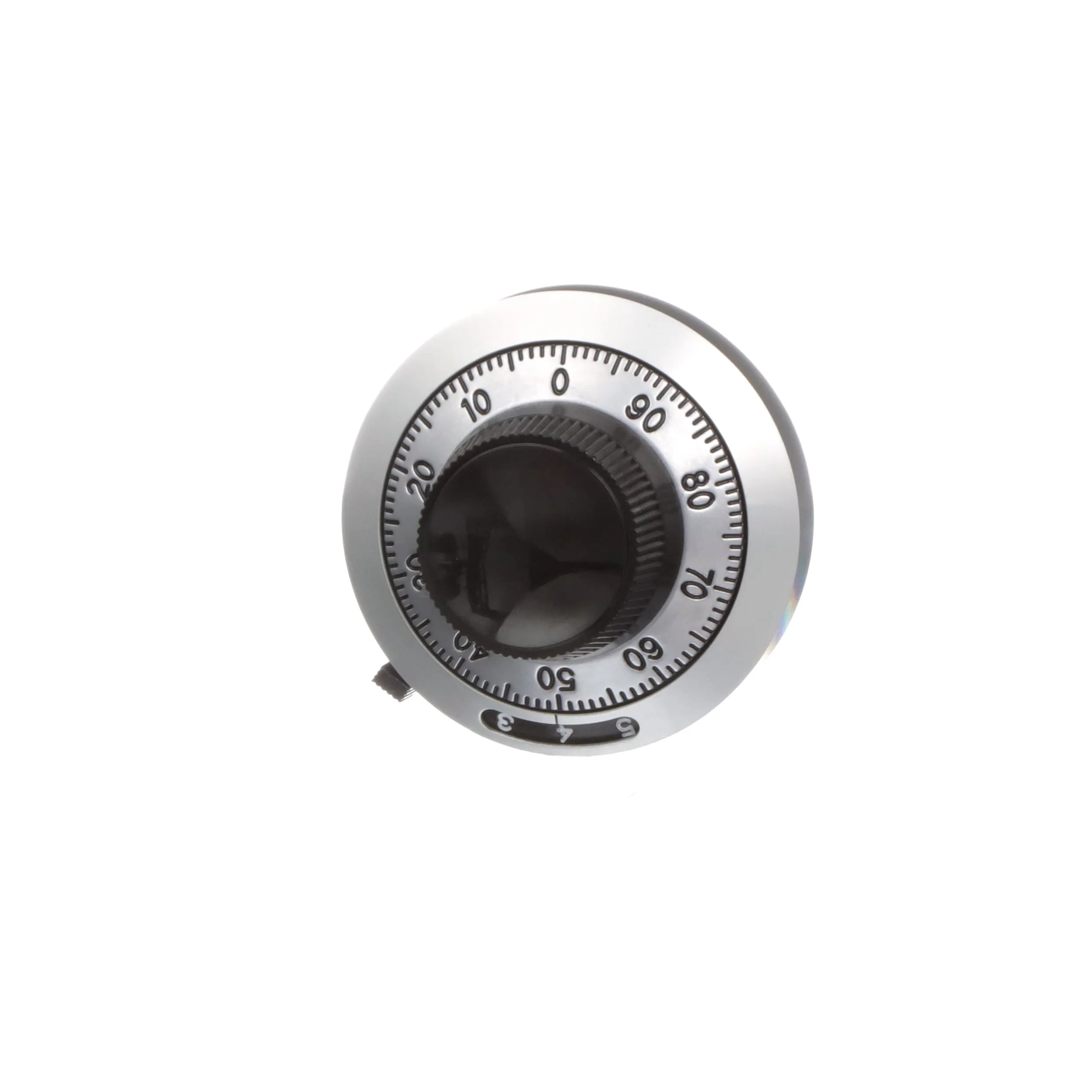

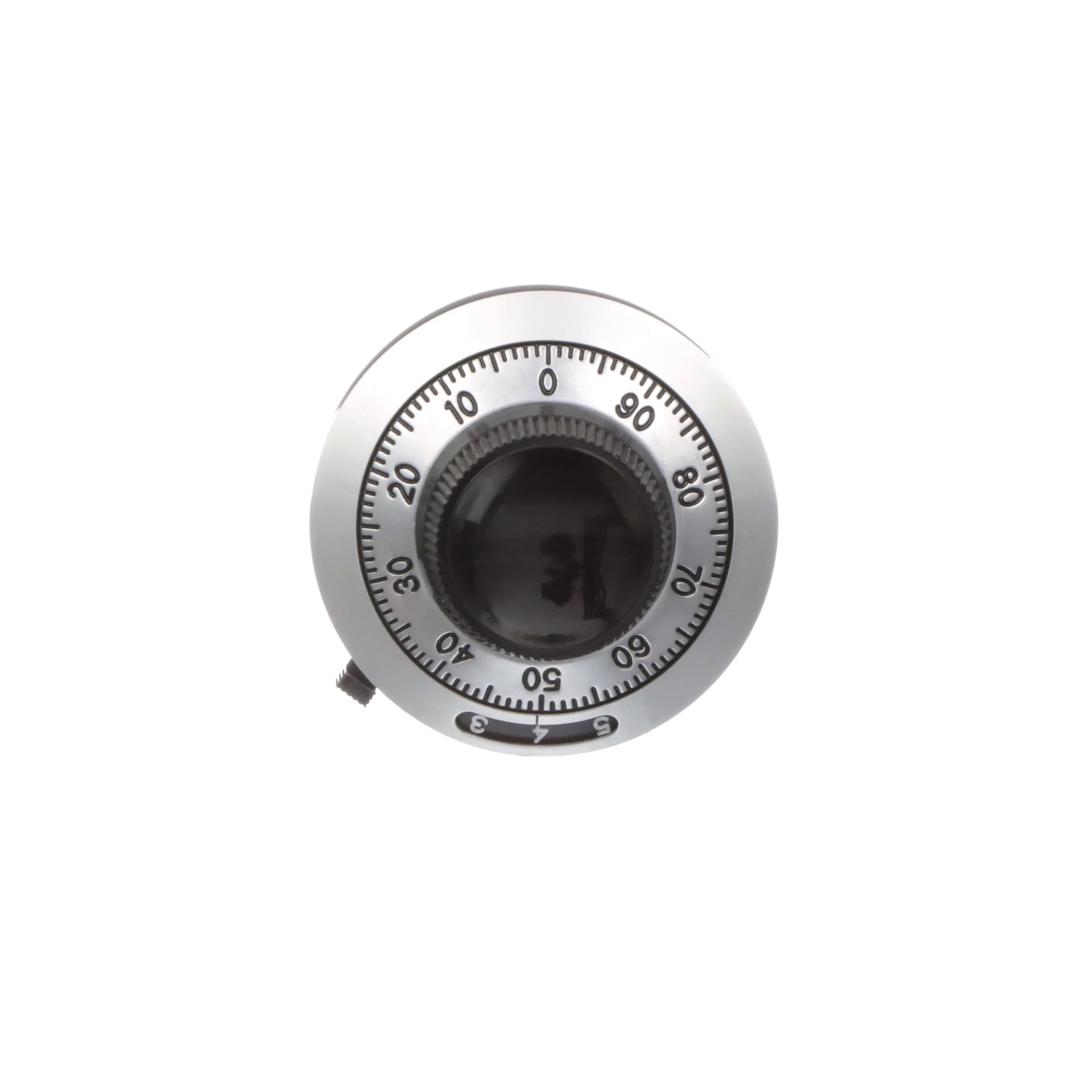

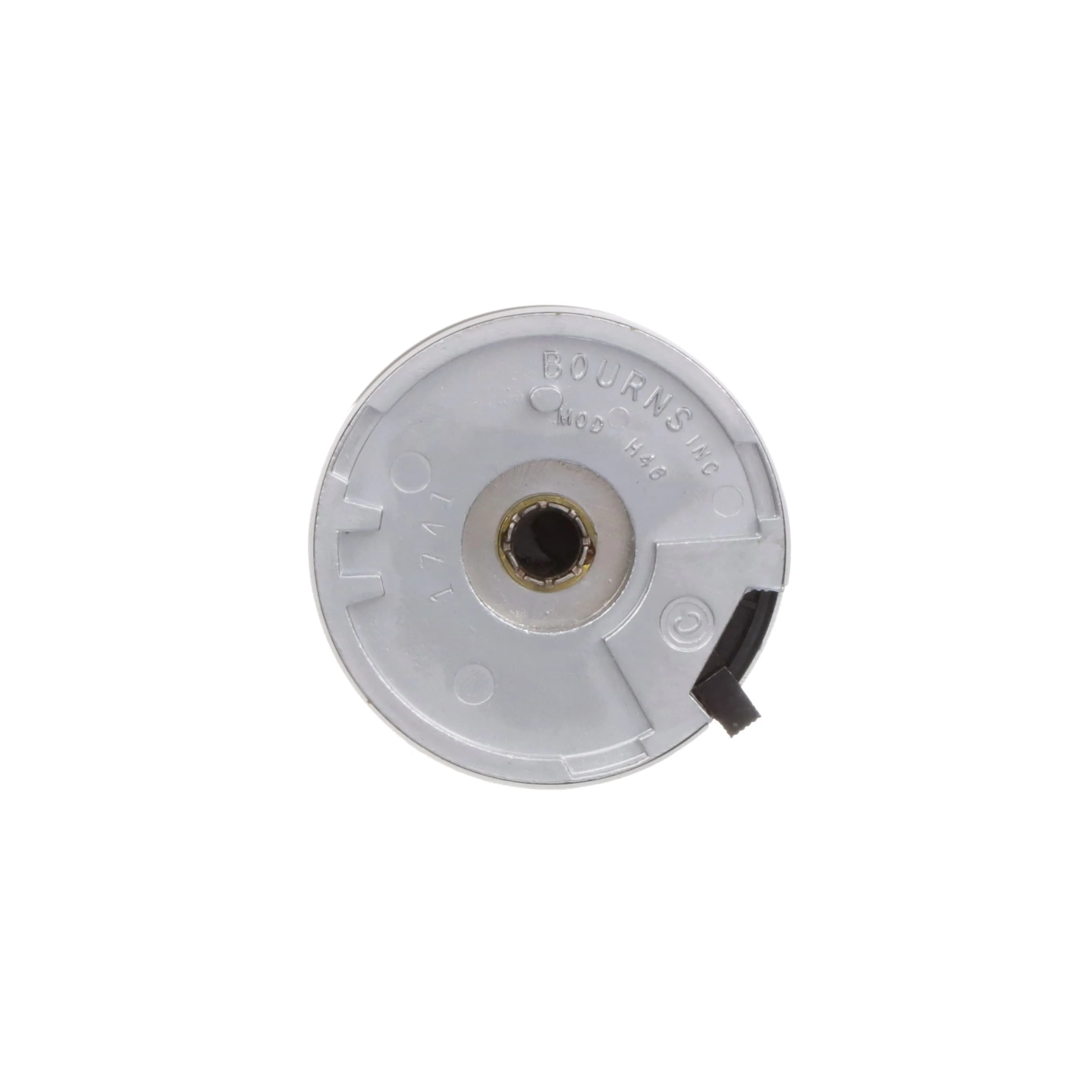

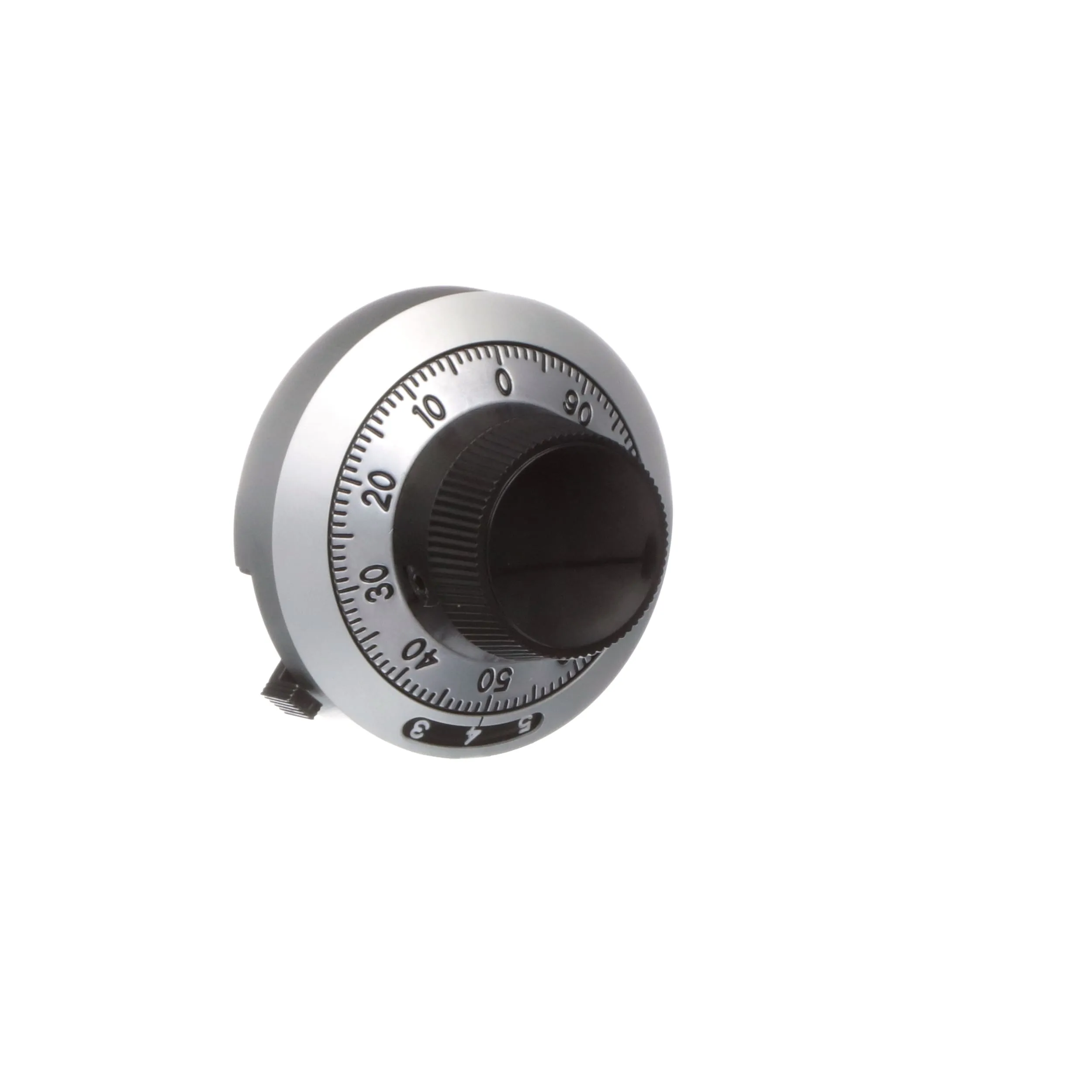

Turns-Counting Dial, 1.5 lbs. in. (Min.) Torque, Satin Chrome Finish, 0.05 in. (Hex) Key Size
20 turn; 113/16" dia. Excellent legibility with black marking on chrome background. For use with precision potentiometers and other rotating devices up to 20 turns. 100 dial divisions per turn. Within 1/1000 of a turn readability. High force "click-break". Two anti-rotation mounting systems with lug or nut. No backlash due to direct potentiometer shaft mounting. Metal-to-metal set screw threads.
It can be finished with satin chrome.
