Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Body Style | Cylindrical |
| Cable Length | 2 m |
| Connection Type | Cable 2-Wire |
| Current, Switching | 500 mA |
| Frequency, Switching | 10 Hz |
| Housing Material | Thermoplastic Polyester |
| IP Rating | IP67 |
| Maximum Operating Temperature | 80 C |
| Measurement Range | 25 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | M30 Threaded Non-Flush |
| Operating Temperature, Maximum | 80 C |
| Operating Temperature, Minimum | -25 C |
| Output | NO/NC |
| Primary Type | Capacitive Proximity Sensors |
| Shielding | Unshielded |
| Supply Voltage | 250 VAC |
Overview

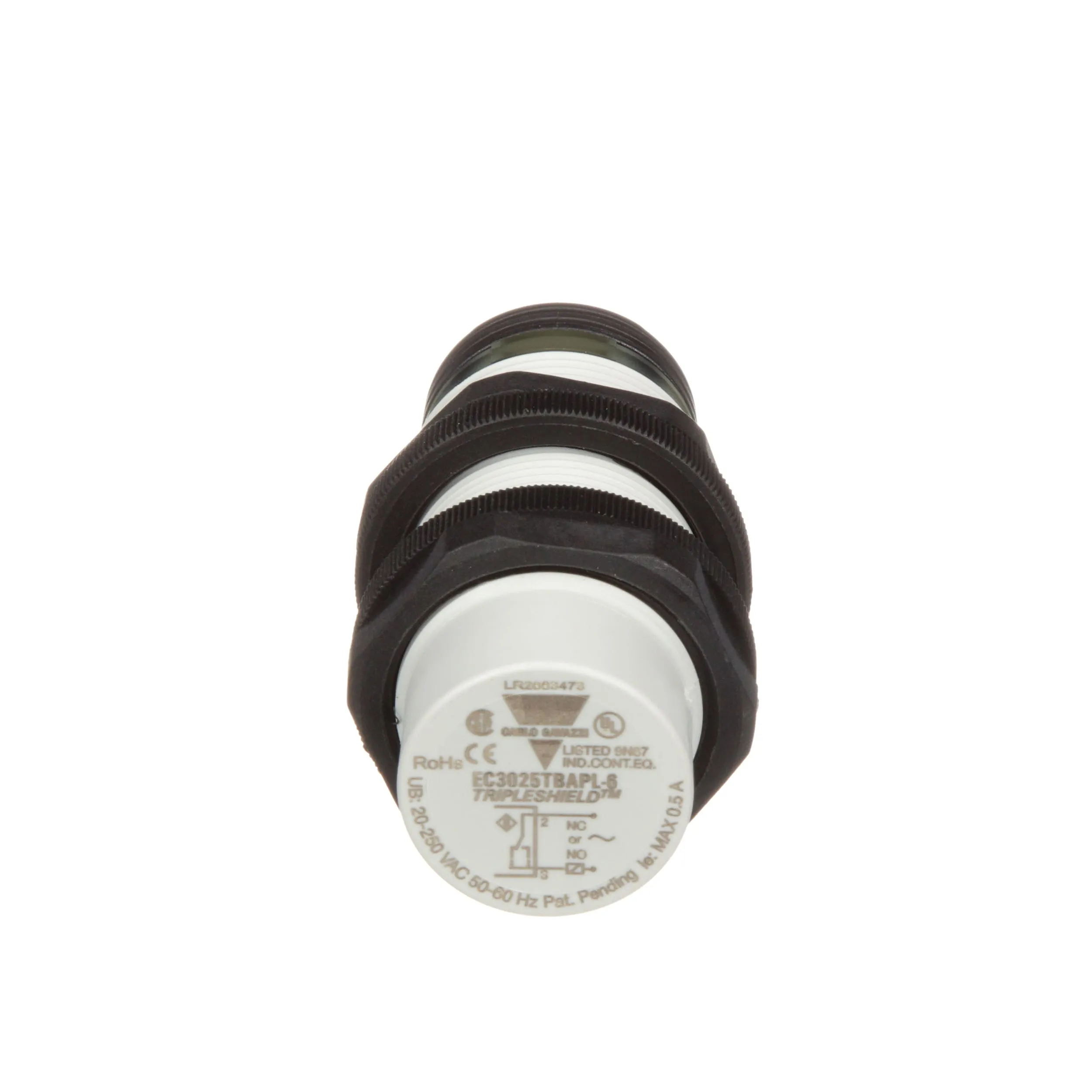

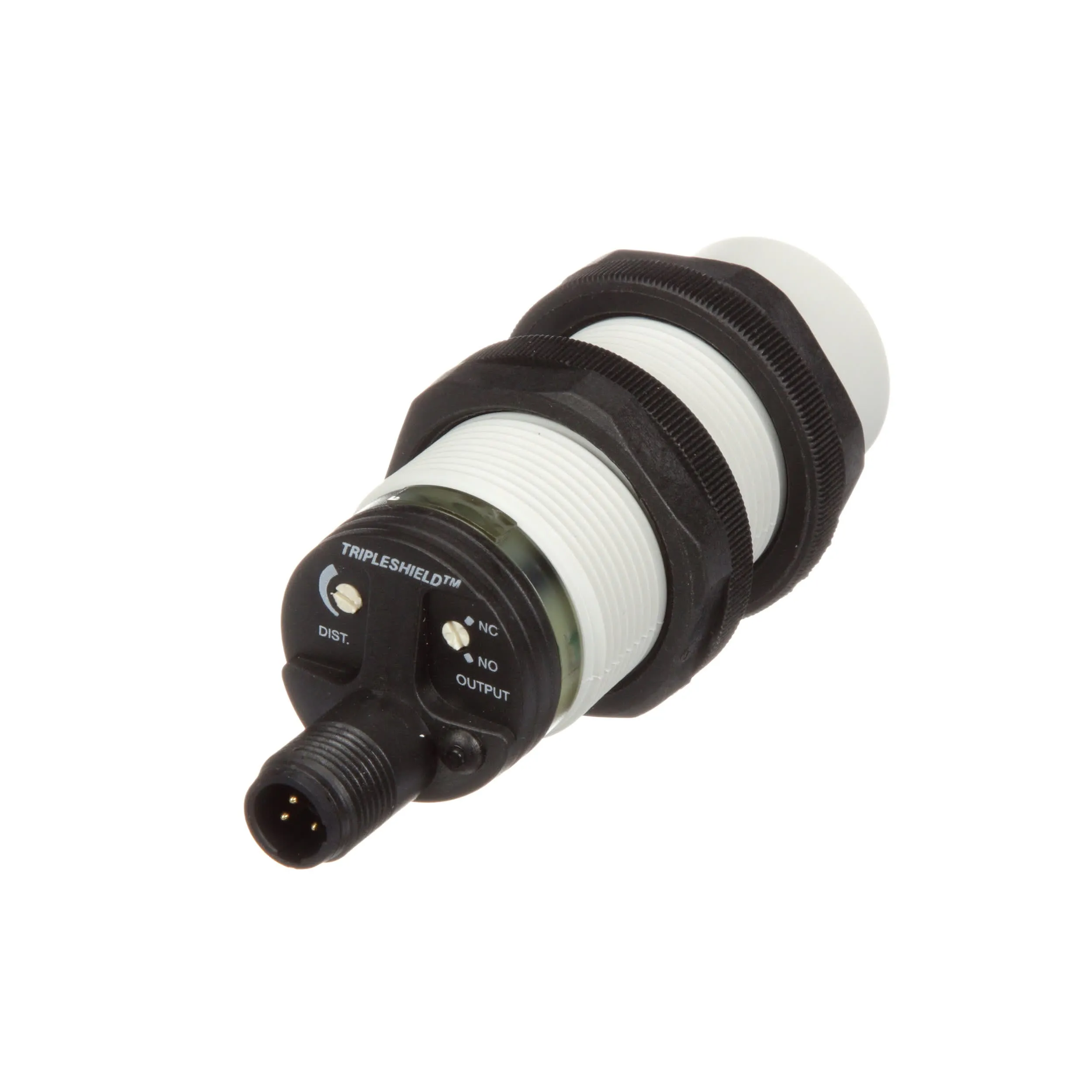

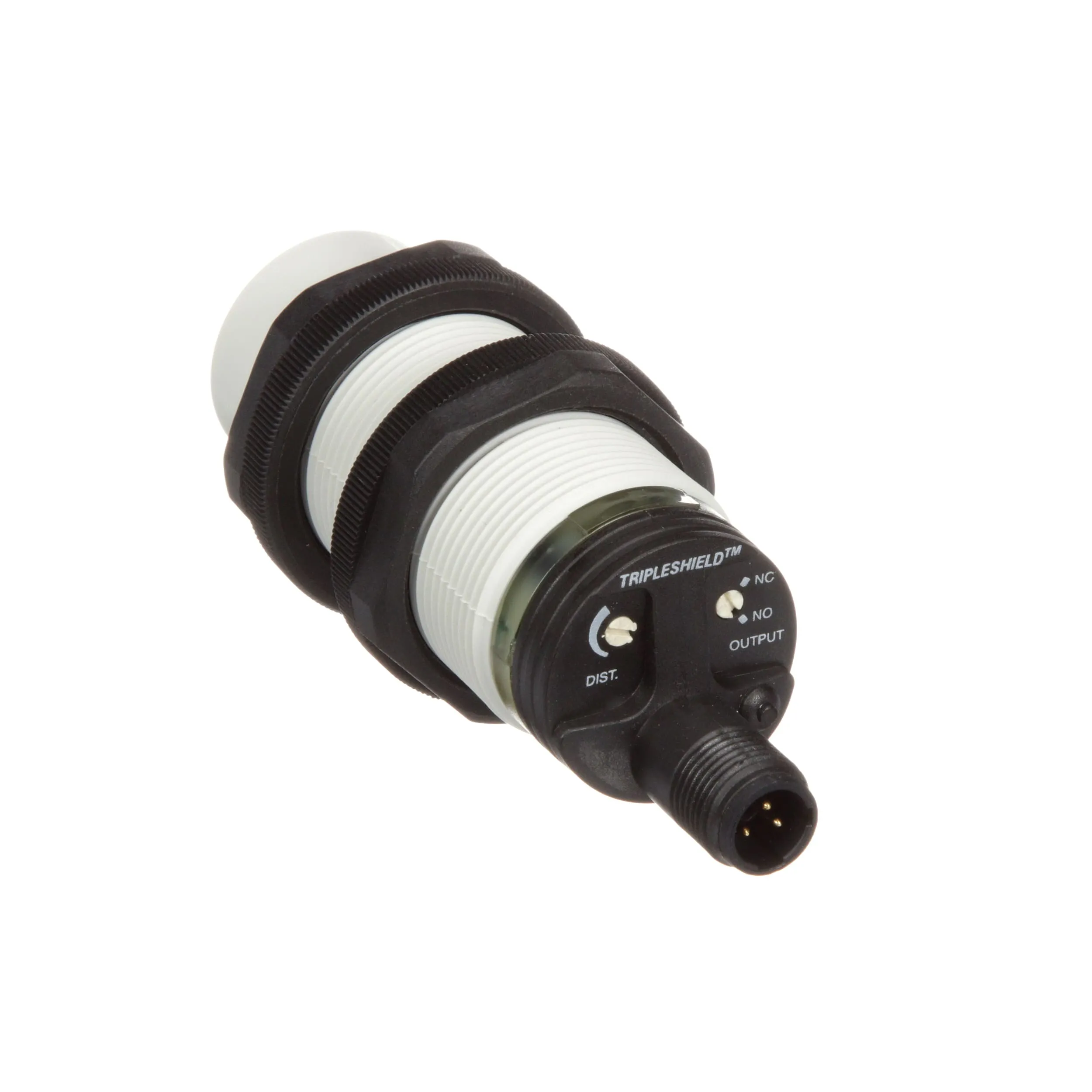

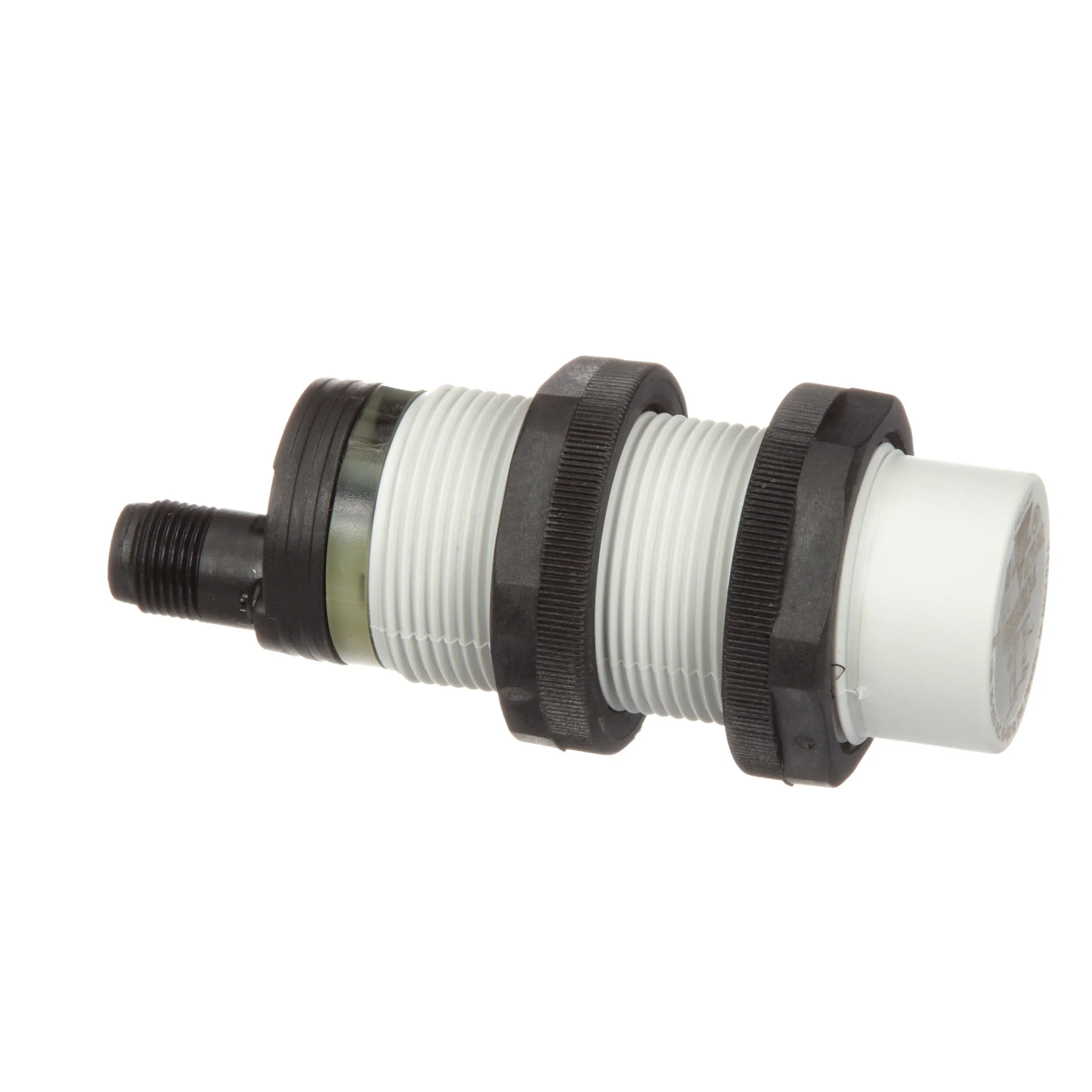

Type EC Capacitive Proximity Sensors
The type EC capacitive proximity sensors come supplied in gray, M30 polyester housing with either a 2 meter PVC cable or M12 plug. 4-wire DC output with both make (NO) and break (NC) switching. Sensing distances are up to 16mm (flush mount) or 25mm (non-flush mount). They are ideally suited in level and plastic machinery applications.
