Product Details
＋

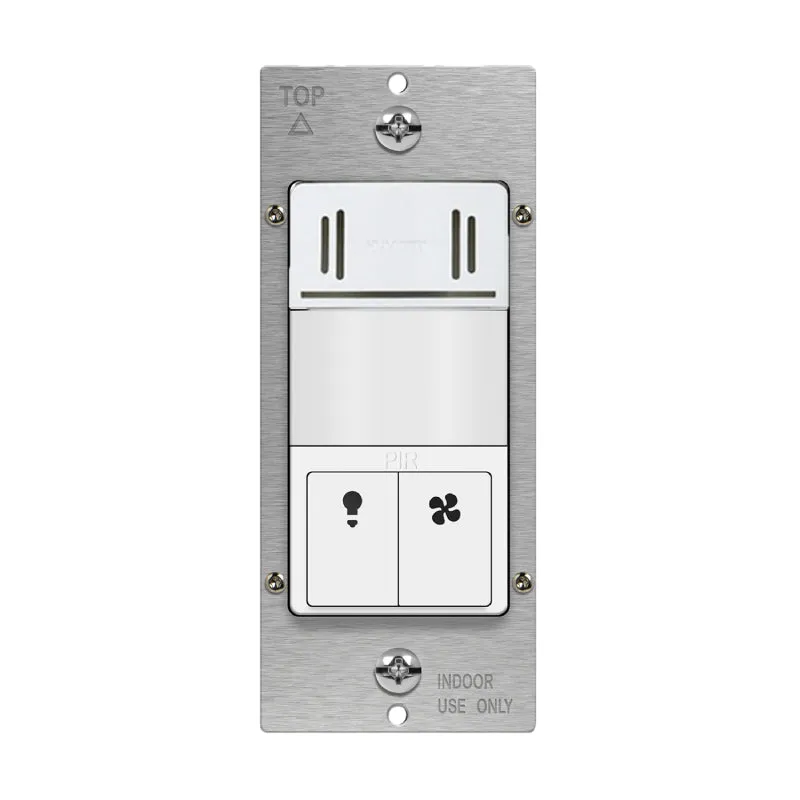

The ENERLITES DWHOS is a wall switch that combines humidity detection and passive infrared (PIR) motion detection to operate the fan and lights in a room.
Features
- Wall Plates sold separately
- Color: White
- Dual-load humidity sensor with PIR motion sensor
- Humidity range: 45%-80% relative humidity
- PIRcoverage: 180° , up to 600sq.ft.
- Adjustable lighting time delay: 15 sec to 30 min
- Fan time delay: 20 minutes
- Input voltage: 120 VAC, 60 Hz
- Fan load: 3 Amp, 1/4 HP
- 2 modes for lighting control: occupancy (auto ON/auto OFF) & vacancy (manual ON/auto OFF)
- Incandescent: 500W
- Fluorescent: 400VA
- LED: 150W
- Single pole
- Neutral wire required
- Separate loads required for light and fan
- Two-year limited warranty
