Add this IPS LCD to your Game Boy Advance to make your play more enjoyable with a modern display, featuring enhanced brightness, color and clarity!
This "Cloud" version is yet another type of IPS backlight you can buy for your Game Boy Advance. The main difference between this version and the and "" versions is that this kit does not require shell modification or soldering for brightness adjustment.
FEATURES:
- Compatible with both 40 and 32 pin models.
- LCD dimensions are closer to an original LCD masking window - 2.9".
- No shell modification required for regular GBA shells, although we do recommend some trimming of the internal alignment edges for a better fit.
- If using our pre cut shells, some trimming near start/select may be needed
- Center screen installation, no offset display
- Brightness adjustment without soldering wires VIA touch sensor tap.
- B/W and color mode VIA touch sensor hold.
- Pixel modes VIA touch sensor hold.
- size recommended, not included.
- Can also be used with OEM and standard IPS Lens, however, OEM may result in the image being slightly cut off. IPS may result in a black border around image on LCD.
- Spacer included to align screen.

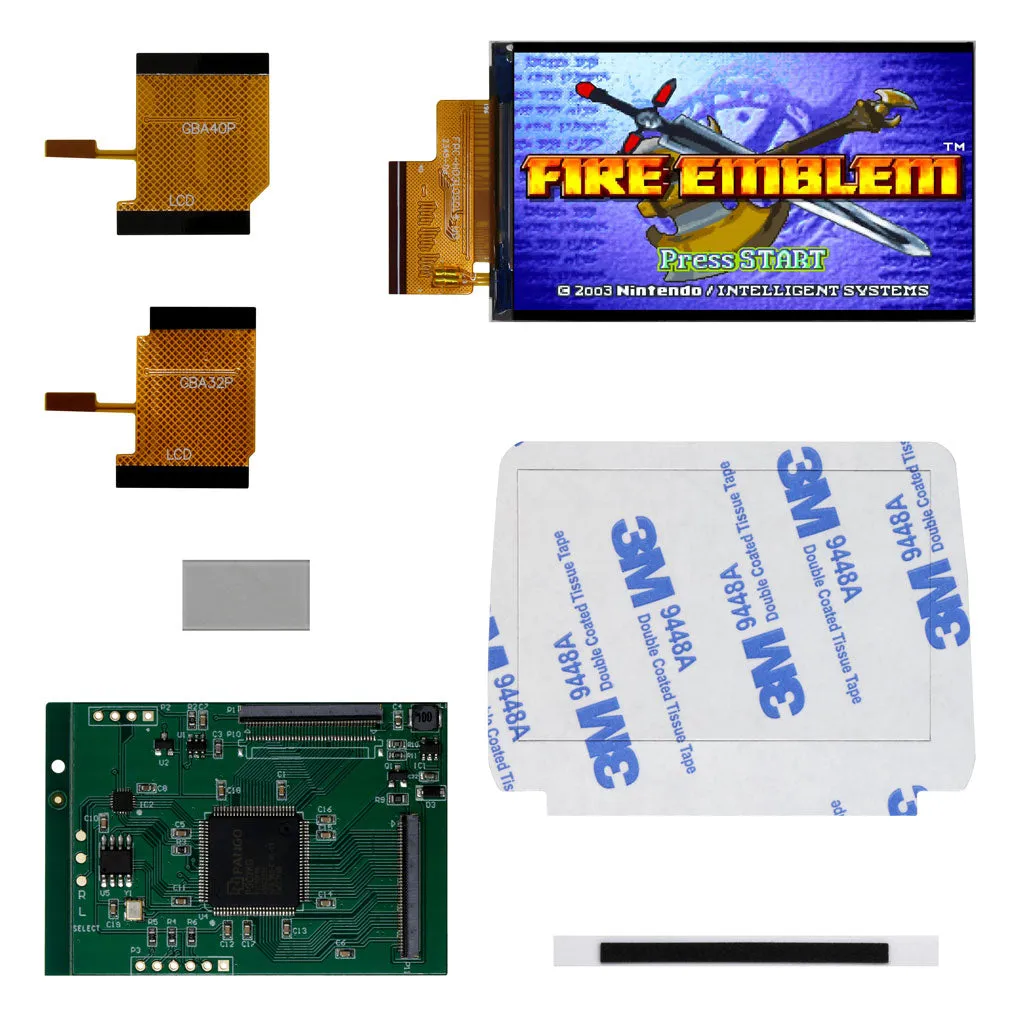

INCLUDED:
- 1x IPS LCD
- 1x PCB
- 1x 40 pin ribbon
- 1x 32 pin ribbon
- 1x Acrylic Spacer
- 1x Adhesive
- 1x Centering foam strip
DOCUMENTATION:
- *This kit has recently been updated - this video shows the older version of the kit but can help with the general install if needed.
NOTES:
- You can use an IPS ready shell if preferred, however you will need to rely heavily on adhesive use, and the IPS window is not perfectly suited for the cloud display.
- After installation, if it is noted that your touch sensor is overly sensitive or is cycling, please for assistance.
WARNINGS:
-
Test before installation! When you receive a backlight/LCD kit, you should to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
- LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
