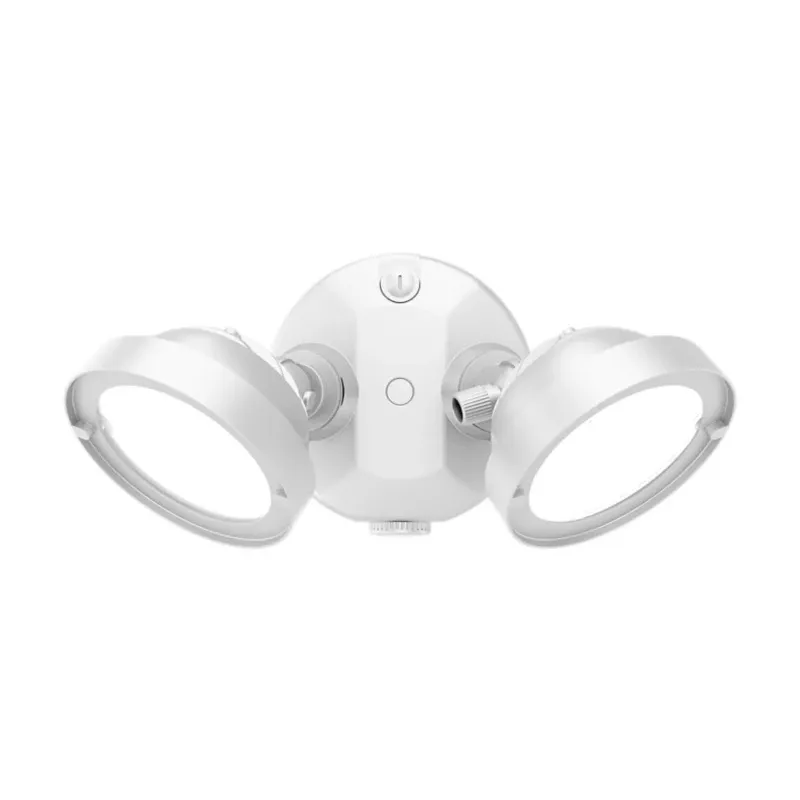

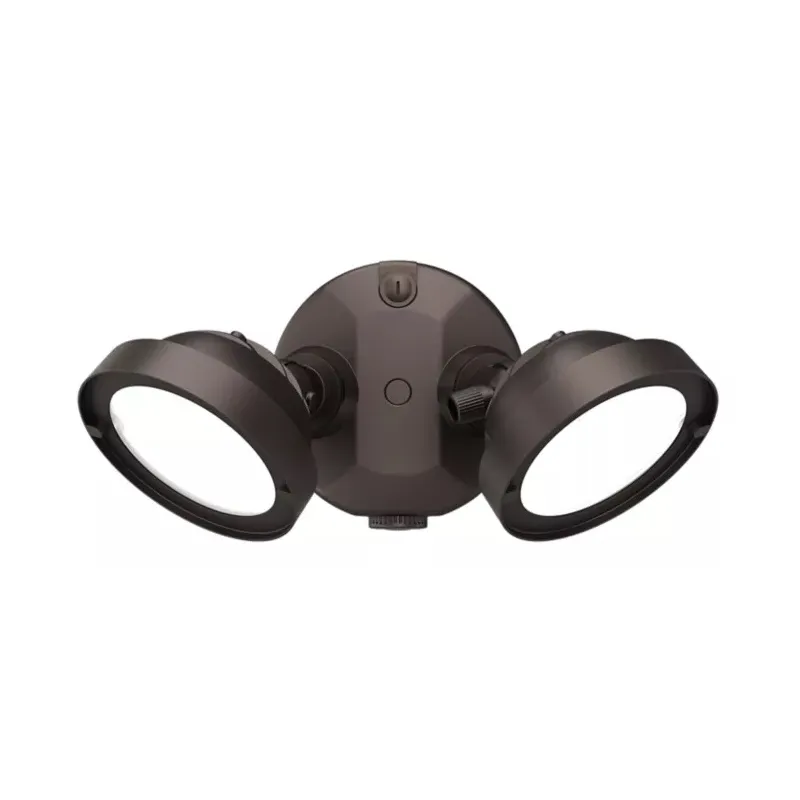

The TGS Floodlight Family is designed to cover many possible use case scenarios, from flood to connected floodlighting. All versions of TGS include a lumen selectable switch that can reduce the light intensity from the maximum available lumen package. Easy to install, and with metal die-cast heads, the TGS is ideal for both residential and commercial areas such as yards, driveways, patios, loading areas and warehouses.

Features

• Finish: Textured Bronze, White

• Type: Dusk to Dawn

• Lamp Head: Round
• Wattage: 12W / 16W / 21W

• Voltage: 120V
• Color Temperature: 4000K
• Lumens: 1582 / 2044 / 2526 Selectable

• CRI: 80
• Construction: Durable Die-cast Aluminum heads with UV resistant Polycarbonate Lens
• 180° detection radius up to 50-ft range, with adjustable sensitivity and duration from 30 seconds - 12 minutes
• Dusk to Dawn TGS fixtures can be manually set to a switch activated fixture by simply rotating the photocell cover cap
• Quick Connect wiring harness system makes wiring simple without requiring wire nuts
• Easy install to wall or eave mounting, with integrated easy connector

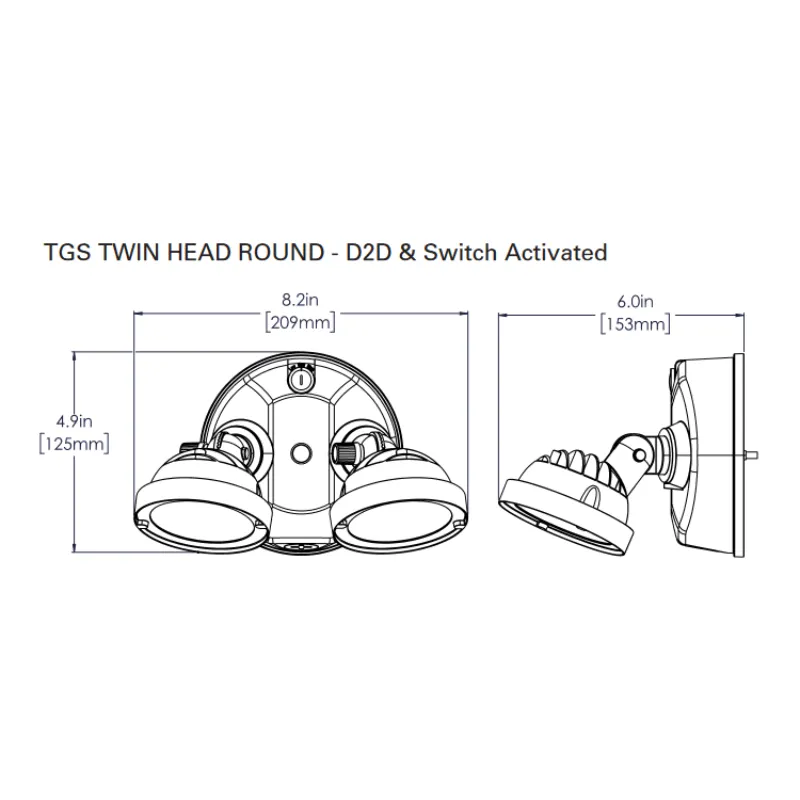

Dimensions

• Width: 8.2"

• Height: 4.9"
• Extension: 6"
• Weight: 1.3 lbs

Estimated Life

• 70,000 hours


Warranty

• 5-Year Limited Warranty

Document

• Photometry & Revit (BIM)
