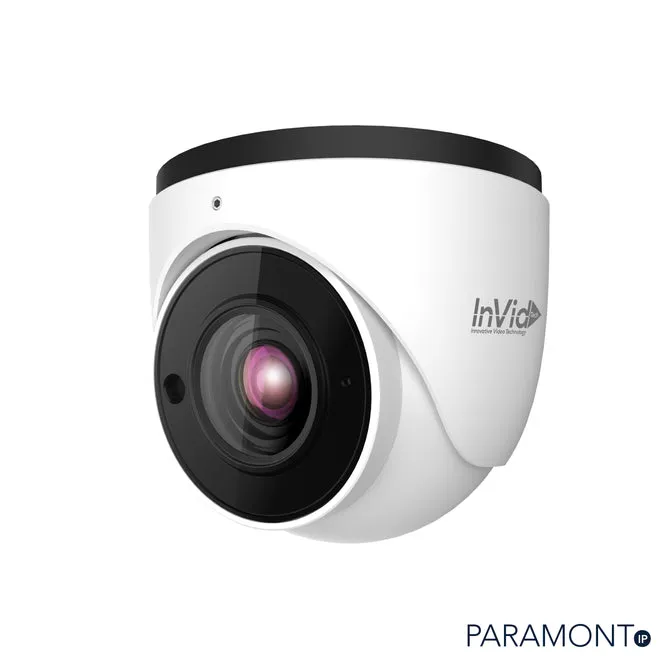

Camera

PAR-C5TXIRA2812

Image Censor

1 / 2.7 “CMOS

Resolution

5MP/4MP

Image Size

2592 x 1944

Video Output

AHD / TVI /CVI/CVBS

Image System

PAL / NTSC

Electronic Shutter

Auto; 1 / 50s ~ 1 / 100000s ( PAL ); 1 / 60s ~ 1 / 100000s ( NTSC )

IR Distance

164 ft.

Frame Rate

5MP @20fps, 4MP @30FPS

Min. Illumination

Color : 0.01 [email protected], AGC ON; B/W : 0 lux with IR

Lens

2.8-12 mm, Automatic Focusing And Motorized Zoom Lens

Lens FOV

2.8-12mm: 91.2°-33.4° H, 75°-25.4° V, 108°-41.2° Crossline

Lens Mount

D14

S/N Ration

≥52dB ( AGC OFF )

Ingress Protection

IP66

Functions

Function Control

OSD (UTC Control)

Day & Night

ICR

Digital WDR

Yes

Digital NR

Yes

AGC

Yes

Auto White Balance

Yes

BLC

Yes

Front light compensation

Yes

HLC

Yes

Sharpness

Yes

Mirror Image

Yes

Smart IR

Yes

Image Setting

Yes

Defect Correction

Auto / Manual

Language

13 languages

Angle Adjustment

Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°

Others

Power Supply

DC12V ( ± 10% )

Power Consumption

IR OFF : < 1W; IR ON : < 3W

Working Environment

-30°F ~ 122°F (-30 °C ~ 50 °C), 10 % ~ 90 % (relative humidity)

Dimensions

5.1 x 4.3 in (130.3 x 109mm)

Weight ( net )

Approx. 1.5 lbs (0.66KG)
