Name: Malibu - Access Control System Combo With Module - 4 Doors - UL Listed - UL Rated
SKU: 285562

Product Details ＋

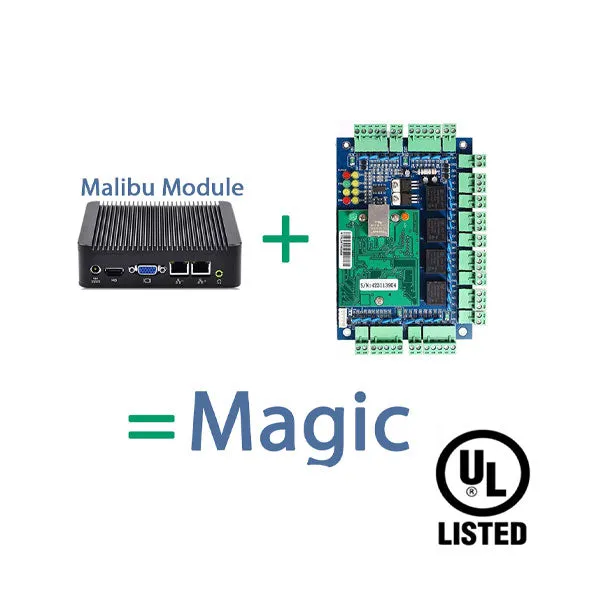

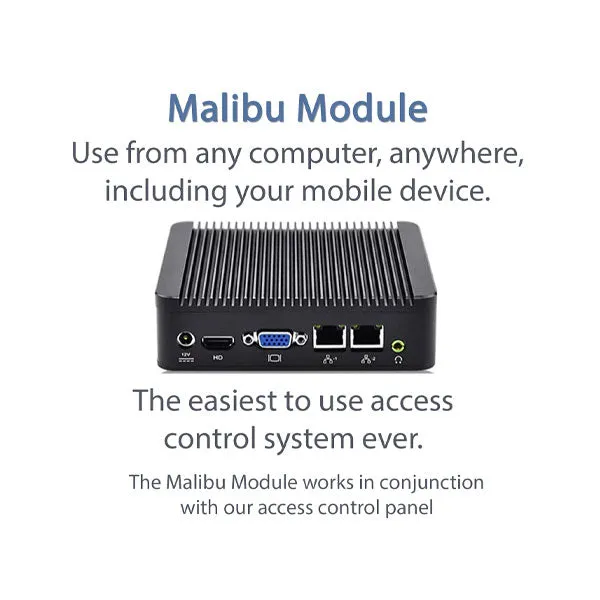

Control 4 doors via RFID card access and managed by the easy-to-use Malibu access control module. The "Module" (Malibu access control module) is the device that powers the entire card access system. The Module has an intuitive UI that makes it very easy to configure and use the card access system. Administration can be done locally or remotely.

Additional modules can be stacked to provide other business systems such as Point of Sale, Food & Beverage, Accounting, Time and Attendance, and much more.

**Back up battery not included**

Note: Each door requires a Monthly License Fee Per Door Please be sure to manually add a monthly subscription for each door needed.

Now this Module has Mobile Credentials. The mobile credential can be setup with the same access level as a normal RFID card. Download the ""app to use your phone for access control. It doesn't use Bluetooth. It's the most simple yet secure mobile credential on the market.

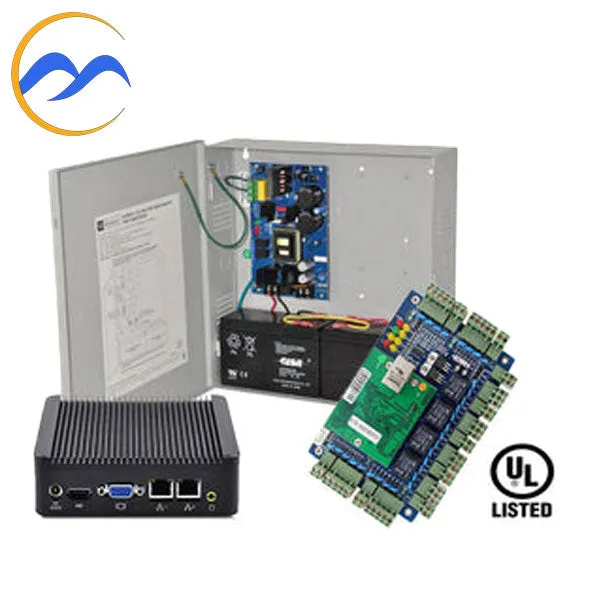

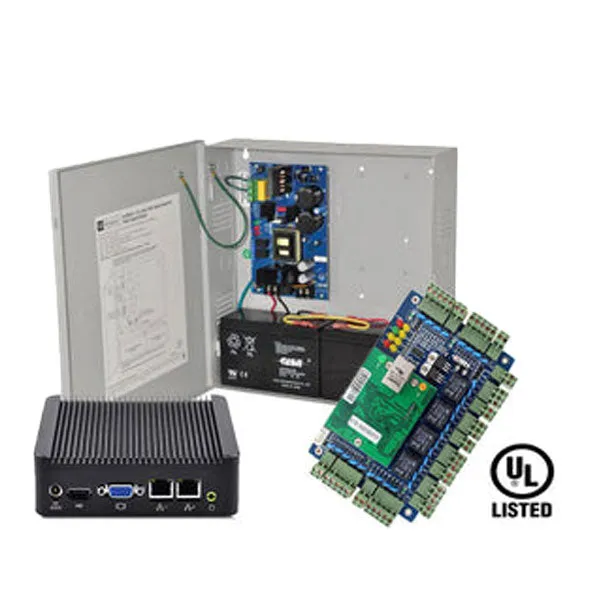

Door Controller Combo with Module (4 Door) UL Listed

Features:

Plug and play
New mobile credentials with geo restriction options
intuitive browser based user interface very easy too configure and manage
Use from any PC or mobile device from any location
Remote open doors
Automatic updates and backups
Quickly activate pre-configured groups "Quick Add"
Extensive time profile setup per access point (door) or group
Schedule doors to remain unlocked or deny access for certain time periods
Restrict access during holiday or maintenance schedules
Easily synchronize remote locations
Import and export data
Bulk edit users
Control administrative access in the software to restrict users to relevant features

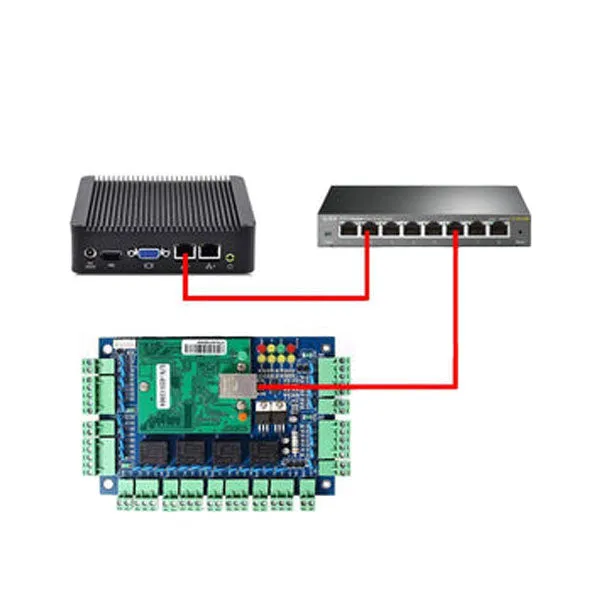

IP based system that automatically searches for controllers on the network.
Input: 115VAC, 60Hz, 3.5A
Output: 12VDC or 24VDC selectable output
Short circuit and thermal overload protection
Built- in charger for sealed lead acid or gel type batteries
Automatic switch over to stand-by battery when AC fails
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (for "C" contacts)
Battery presence supervision (form "C" contacts)
AC input and DC output LED indicators
Operating 0° C to 49° C (32° F to 120° F)
Storage - 20° C to 70°C ( - 4° F to 158° F)
Relative Humidity 85% /-5% (BTU/Hr [approx] 12VDC: 37BTU/Hr, 24VDC: 74 BTU/Hr
System AC input VA requirement: 402.5VA
wall mount enclosure for indoor use
Accommodates up to two 12VDC/7AH batteries
Dimensions 13"W x 13.5"H x 3.25"D (330mm W x 343mm H x 83mm D)
1/2" and 3/4" combination knockouts
Customize the metal enclosure or back plane to accommodate power supplies, distribution boards, access controllers and accessories
Easy, fast installation saves time and labor - no drilling required
Can be reused and re-positioned
Zinc alloy cover eliminates the possibility of EMI/RFI
26 lb max strength
23.2mm (1"0 diameter cup, 6.5mm hole size
Includes hardware (screws and standoffs)

Specifications:

PCB Board Size	160 x 106 mm (6.3 x 4.17 in)
Case Size	273 x 228 x 65 mm (10.75 x 8.98 x 2.56 in)
Power Supply	12V DC 4-7A
Power Consumption of Circuit Board	<100mA
Doors Controlled	8 doors with extension MAC-004-ALUL
Door opening time extending setting	1-600 seconds (adjustable)
Operation Temperature	-40℃~70℃ (-40ºF~158ºF)
Operation Humidity	10-90% RH, No Condensation
Quantity of users	20,000
Quantity of Event Buffers (offline)	100,000 event buffers
Power interruption protection measure	High speed memory, records never lost
Max Distance from Reader to Controller	100m or 328 ft (suggested distance 80m or 262 ft)
Max Distance between Controllers	TCP/IP: Depends on net coverage area
Alarm	Goes off when door is open for an extended time, illegal break in, intimidate
Unlock	Based on internal and external validation
Operating System	Malibu Linux OS
Ethernet ports	2 x ethernet Port Gigabit
CPU TDP	10 Watts
Adapter	110v AC adapter 12v DC input
