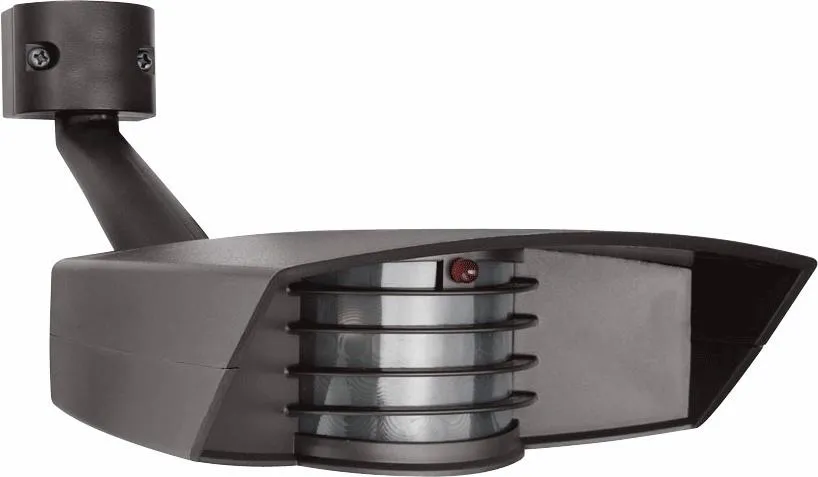

STEALTH 110 Sensor for 12 volt AC/DC systems. Great for controlling low voltage lighting or security systems. 96 Watt switching capacity.

Features

• Temperature compensation
• Radio frequency immunity
• 6000 volt surge protection
• LED detection & "on guard" indicator
• Color matched vandal resistant lens and grill
• Protected manual override with auto reset
• Can be wired in parallel

Color: Bronze

Weight: 1.1 lbs

Listings

• UL Listing: Suitable for wet locations.

Electrical

• Power Consumption: 1W
• Surge Protection: Withstands up to 6000 volts.
• Wall Switch Manual Override: Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed.
• RF Immunity: Circuits fully shielded for maximum radio frequency immunity.
• Voltage: 12 Volt AC/DC, 96 watts capacity.

Sensor Characteristics

• Time Adjustment: 5 seconds to 12 minutes.
• Wide Sensitivity Control: Adjustable from 100% to 30%.
• Advanced Detection Logic: Minimizes false triggers.
• Detection: 110° view.

Construction

• Temperature Compensation: Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures.
• Horizontal Lock, No-tool Joints: Keeps sensing pattern level for fast, error-free installation.
• Floodlights: Precision die cast aluminum. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers.

LED Characteristics

• LED Detection Indicator: Shows when sensor is detecting in daytime and glows red at night for "on-guard" deterrence.
• Color Matched Lens: Dark lens with bronze units, white lens with white units.

Other

• Photoelectric Control: Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.
• Warranty: 10 year sensor warranty.
