Product Details
＋

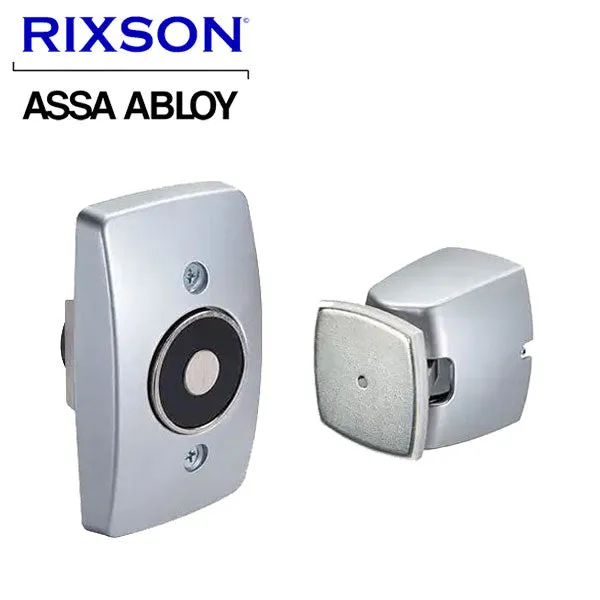

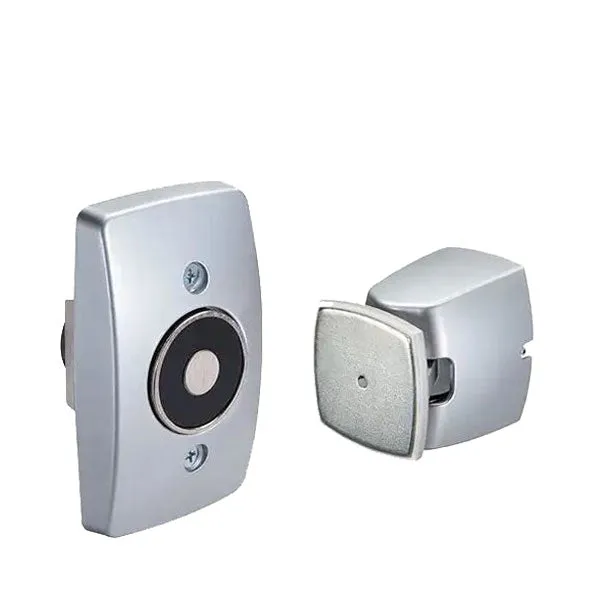

Rixson 998M Series Electromagnetic Door Holders/Releasers are designed for virtually any remote door release application. to hold self-closing fire or smoke barrier doors open until automatically released by fire alarm, smoke detection, or sprinkler systems. They can also be manually controlled wherever instant closing of doors is required for safety or convenience.
Features
- Wall Mount
- Wall must be properly reinforced and outlet box adequately fastened
- Concealed Wiring
- 25-40 lbs of holding force, except where noted
- Fail-Safe Operation; power failure releases door to close
- Positive release button initiates closing motion
- Tri-Volt Coils to accommodate 12VDC, 24VDC, 24VAC, and 120VAC.
- Spotting template included
- ANSI/C00011
Specifications
| Operation | Fail-Safe - Electronically Locked |
| Mounting | Wall Mounted |
| Total Projection | 3-5/8" (92mm) |
| Mounting Requirements | 2" x 4" x 1-3/4" (51 x 102 x 45mm) Outlet Box |
| Finish | 689 - Sprayed Aluminum |
| Voltage and Current | 12VDC, 0.40amp 24VAC/VDC, 60Hz .020amp 120VAC, 60Hz .020amp |
| Certifications | ANSI/BHMA 156.15, C00011 |
| Warranty | 2 Year Limited |
