Product Details
＋

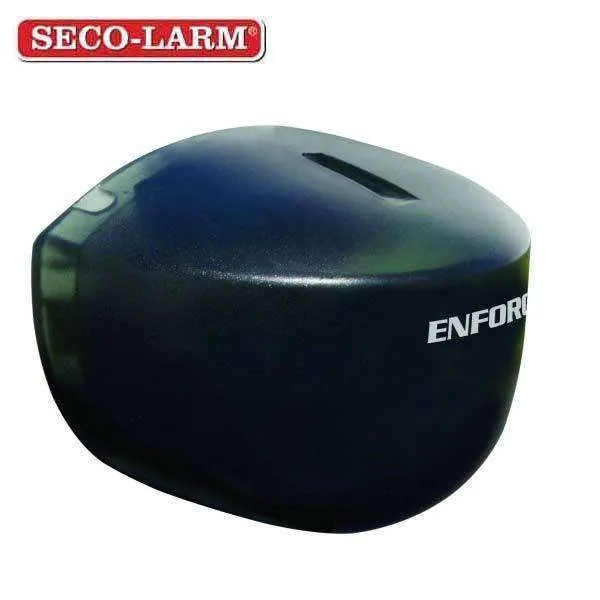

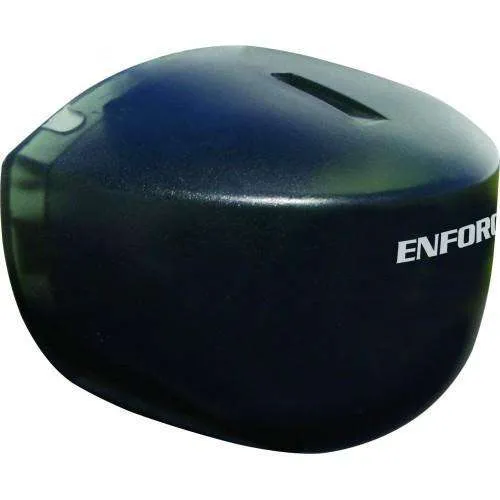

The ENFORCER Microwave RTE Sensor is a compact motion sensor with an adjustable output timer that can be connected to an access control keypad, gate opener, and can be used to trigger any device with an egress input.
- 12~24 VDC Operating voltage
- 24.150GHz Microwave Doppler technology
- 10ft (3m) Sensing range, adjustable
- Adjustable relay output time, 1~33 s
- Small size allows for a wide range of applications
- Universally compatible, install the sensor above doors for no-touch ingress/egress
- More consistent detection in large areas and over a wide range of temperatures
- Indoor use only
| Cable Length | 8' (2.5m) |
| Operating voltage | 12~24 VDC |
| LED Indicator | Red on relay activation |
| Current Draw | Standby: 23mA@12VDC/14mA@24VDC Active: 39mA@12VDC/21mA@24VDC |
| Sensing Range | 3'~10' (0.9~3m), adjustable |
| Reaction time | 5cm/s |
| Sensor Frequency | 24.150GHz |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 3-1/8"x2-3/8"x2-1/8" (80x60x54 mm) |
| Weight | 2.5-oz (70g) |
| Relay Output | 2A@30VDC (0.5A@125VAC) Dry relay, NO/NC/COM |
