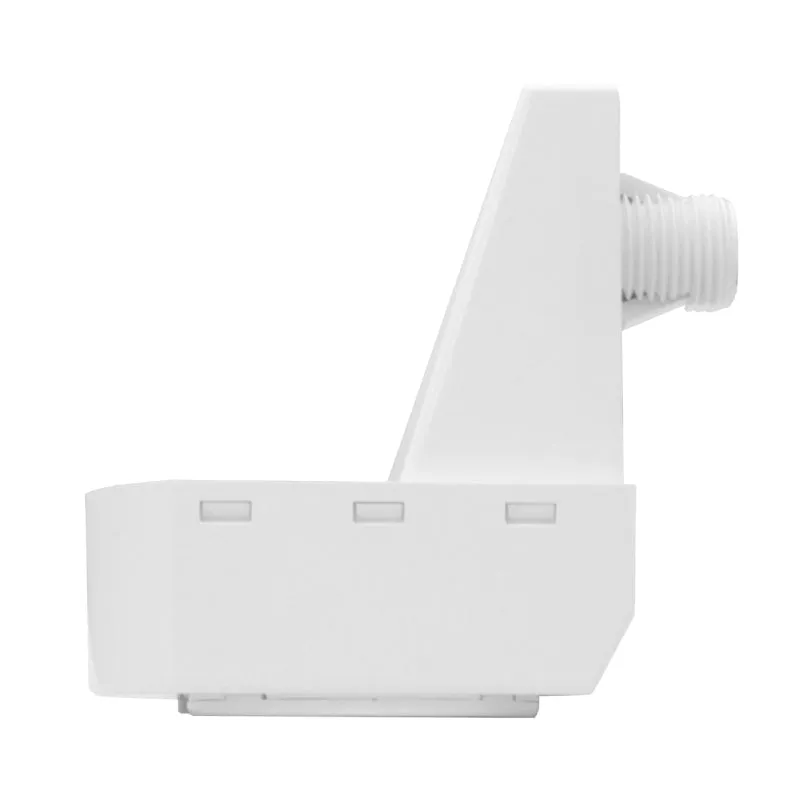

The LSXR Family of fixture mount occupancy sensors provides reliable and versatile solutions for commercial and industrial lighting control applications.

Features

• Finish: White
• Lens: High & Low Mount 360º
• Voltage: 120-277V
• Lead Length: 8"
• Default Time Delay: 10 min
• Four interchangeable lenses - high mount 360º, low mount 360º, high mount aisleway, and small motion 360º
• Integrated mounting bracket drops lens down 3” from chase nipple - no bracket accessory required
• 100% digital PIR detection - provides excellent RF immunity
• No PIR field calibration or sensitivity adjustments required
• Single or dual relay versions - designed with robust protection from the harsh switching requirements of T5 fluorescent and LED loads
• Powers from single or two-phase line connections
• Reversible hot & load wires - eliminates backwards wiring
• Photocell and 0-10 VDC dimming options
• Digital push-button programming - no tools or analog adjustments required
• Non-volatile settings memory
• Convenient test mode - quickens initial walk and/or photocell testing
• Green LED indicator
